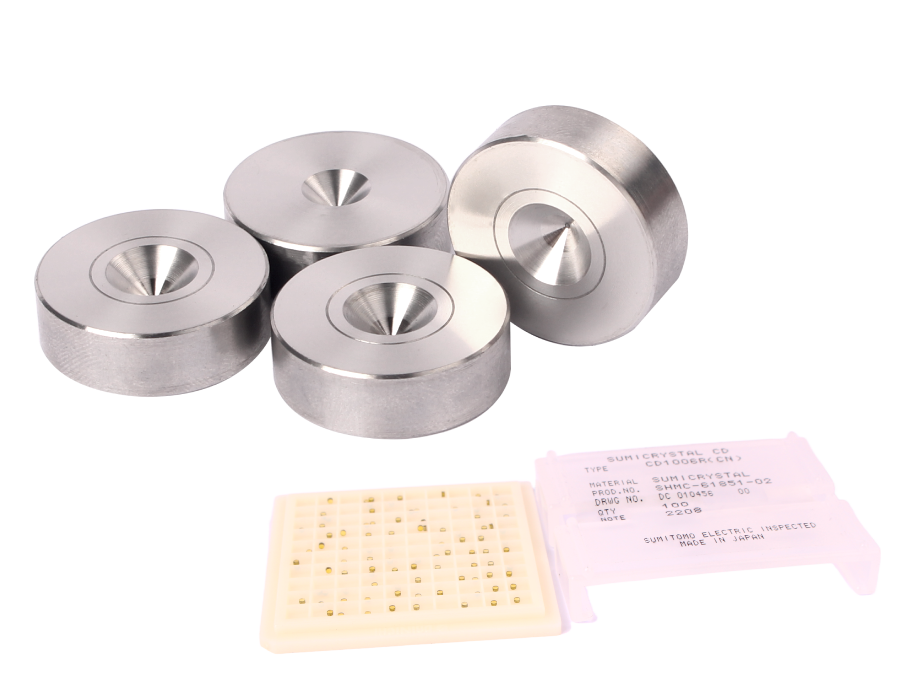

Single crystal model (AD/DJ/MD)
Single crystal is artificial synthetic diamond, single crystal has a very high hardness and wear resistance, heat dissipation performance is very good, can be used for high temperature processing technology, all the mold core is 111 face orientation, under controlled conditions, without impurities, no crack.Physical characteristics and natural diamond is extremely similar with superior quality and wear resistant properties.Applicable to special alloy wire, tin wire, precious metal wire, copper, aluminum and other metal wire drawing.
Standard Product Catalog
| Model | Inscribed circle diameter (mm) | The thickness of the standard (mm) | Wire drawing die aperture (mm) | Recommended maximum aperture (mm) | ||
| MD111/05 | 0.6 | 0.5 | 0.015-0.10 | 0.10 | ||
| MD111/06 | 0.7 | 0.6 | 0.03-0.15 | 0.15 | ||
| MD111/07 | 0.8 | 0.7 | 0.10-0.20 | 0.20 | ||
| MD111/08 | 0.9 | 0.8 | 0.15-0.25 | 0.25 | ||
| MD111/09 | 1.0 | 0.9 | 0.20-0.35 | 0.35 | ||
| MD111/10 | 1.1 | 1.0 | 0.30-0.40 | 0.40 | ||
| MD111/11 | 1.2 | 1.1 | 0.35-0.50 | 0.50 | ||
| MD111/12 | 1.3 | 1.2 | 0.45-0.60 | 0.60 | ||
| MD111/13 | 1.4 | 1.3 | 0.55-0.70 | 0.70 | ||
| MD111/14 | 1.5 | 1.4 | 0.65-0.80 | 0.80 | ||
| MD111/15 | 1.5 | 1.5 | 0.75-0.90 | 0.90 | ||
| MD111/16 | 1.6 | 1.6 | 0.85-1.00 | 1.00 | ||
| MD111/17 | 1.7 | 1.7 | 0.95-1.10 | 1.10 | ||
| MD111/18 | 1.8 | 1.8 | 1.05-1.20 | 1.20 | ||
| MD111/19 | 1.9 | 1.9 | 1.15-1.30 | 1.30 | ||
| MD111/20 | 2.0 | 2.0 | 1.25-1.40 | 1.40 | ||
